Ra≦1.0nm1/2 lattice constant of LSAT is 0.3868 nm, which matches well with high temperature superconductors and other high-function oxides. LSAT crystal has larger size and higher crystallinity than SrTiO3, and it does not contain twin crystals as LaAlO3.
Please make use of our substrate for your research.
| Composition | (LaAlO3)0.3-(SrAl0.5Ta0.5O3)0.7 |
|---|---|
| Crystal system | Cubic |
| Crystal structure | Perovskite |
| Lattice constant | a=0.7736 nm (1/a=0.3868 nm) |
| Melting point | 1840 ℃ |
| Density | 6.79 g/cm3(20 ℃) |
| Dielectric constant | 22 (27℃,1 MHz) |

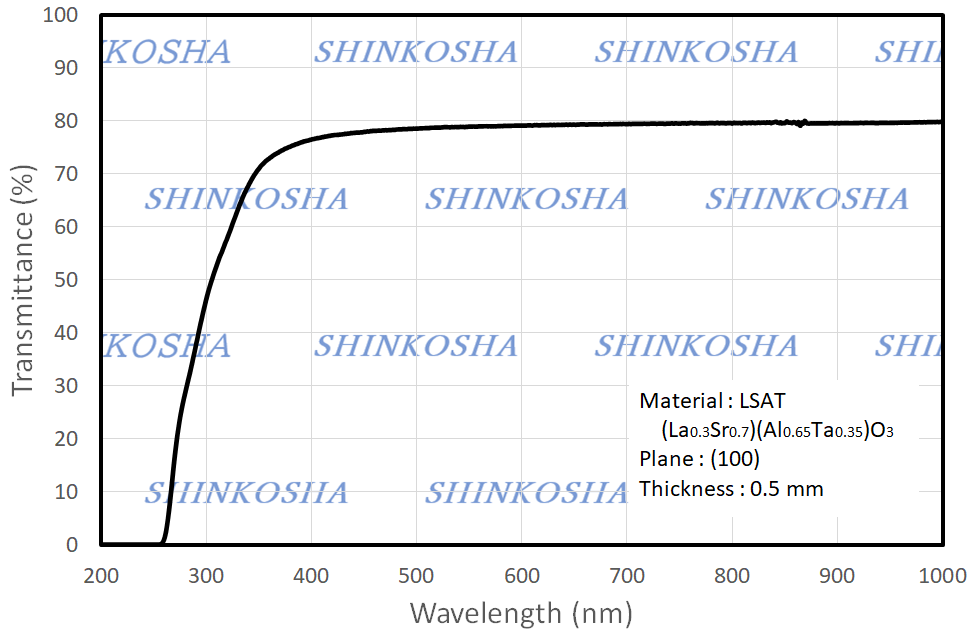

Transmittance of LSAT
| Size (Outer size tolerance: ±0.1 mm / Thickness tolerance: ±0.05 mm) |
10×10×0.5 t 15×15×0.5 t |
|---|---|
| Orientation (Tolerance: ±0.5°) |
(100) |
| Polishing | One-side / Both-side |
| Surface roughness | Ra≦1.0 nm, Rmax≦5.0 nm |
| Options | OFF substrate Breakable substrate |
※If you are looking for other specs, please contact us.
